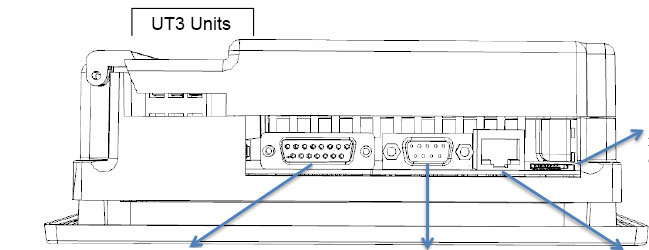

UT3 Series

Micro SD slot

A Micro SD slot is available for additional data storage or for data transfer.

Ethernet Port

Ethernet port used for monitoring, programming, PC and PLC communications. It can also be used for internet access and email alerts.

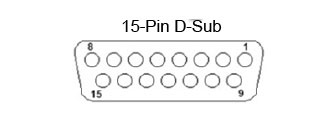

This serial connector is used for PLC communications and can be used for RS232, RS422 and RS485 communications.
The serial connector used for programming or RS232 Communications

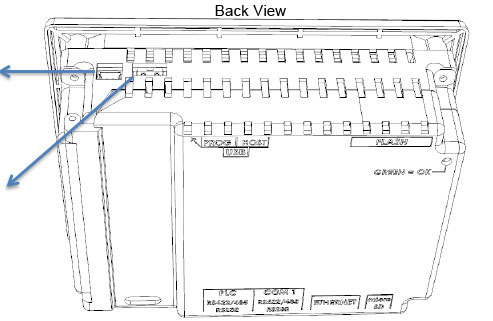

Prog. USB

This USB Port is configured as a Port B device with a Port A connector. This port can only be used for programming directly from a PC.

Host USB

This USB is for Data Logging/ Storage capabilities. In addition, this port may also be used for programming through a pre-loaded file on a USB Flash Drive.

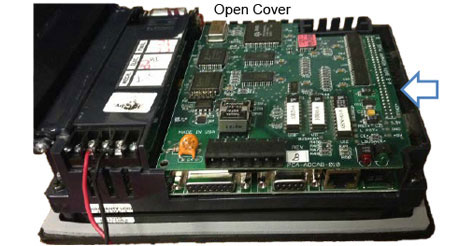

Option Card Connector

An option card connector is available* for additional connectivity (DataHighway Plus). In addition, the EZ3 Series allows for compact flash storage.

*Option card must be installed by manufacturer.
