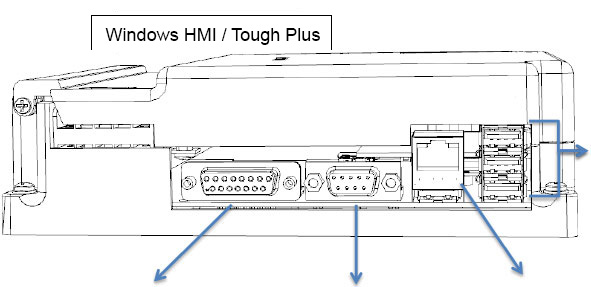

Windows HMI / Tough Plus

USB Port

On Windows HMI panels, these 3 ports are configured as standard Universal Serial Bus (USB) Port A. Note: The USB Port beneath the Ethernet port is configured as a Port B device with a Port A connector. This port can only be used for programming directly from a PC.

On the Tough Plus, the USB Ports are currently only used for data collection or program upload.Note: Only one drive can be used at a time.

Ethernet Port

Ethernet port used for monitoring, programming, PC and PLC communications. It can also be used for internet access and email alerts.
This serial connector is used for PLC
communications and can be used for RS232,
RS422 and RS485 communications.		 The serial connector used for programming or RS232 communications.

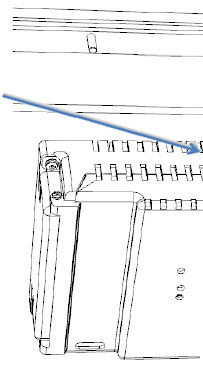

Micro SD slot

A Micro SD slot is available for additional data storage on the Windows HMI/Tough Plus units.

EZ Windows HMI

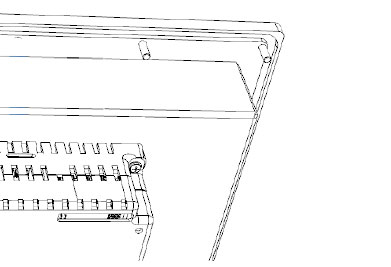

Back View

Optional Card Connector

An option card connector is available* for additional connectivity (DataHighwayPlus, Modbus Plus, Devicenet, Profibus, CC-Link).

*Option card must be installed by manufacturer
