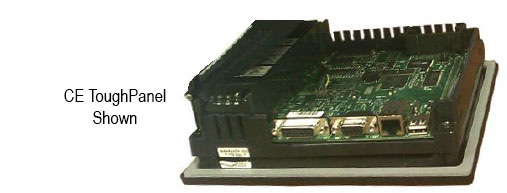

Standard ToughPanels / CE ToughPanels |
 |
 |
NVC Card
The Net View and Control (NVC) Card allows the user to remotely monitor, control and program their devices. It also allows for data acquisition and storage. The NVC card plugs into the extension connector of the ToughPanels and comes with an Ethernet Port. Note: On Standard ToughPanels, Ethernet is available via a protocol-specific adder card for either PC or PLC communications depending on application needs. |
|
 |
 |
|
|
| |

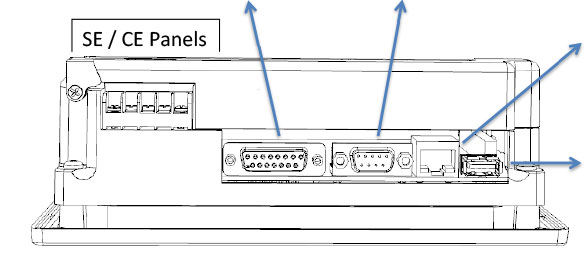

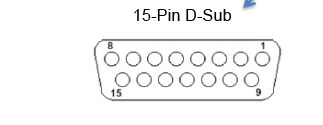

This serial connector is used for PLC communications and can be used for RS232, RS422 and RS485 communications. |
The serial connector used for programming
or RS232 communications. |
Ethernet
Ethernet port used for monitoring, programming, PC and PLC communications. It can also be used for internet access and email alerts. |
|
 |
|
USB Port
|
|
| USB port that supports peripheral devices (e.g. mouse, keyboard, etc.). In addition, this port may also be used with a Flash Drive or for programming purposes. |
|
 |

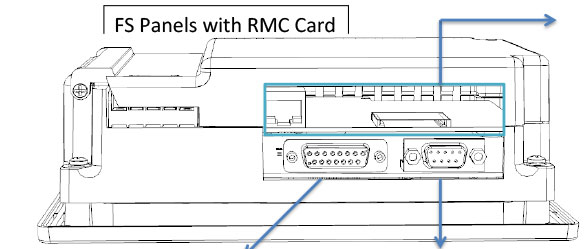

Option Cards
Both the Standard ToughPanels and the CE ToughPanels possess an Option Card connector for additional connectivity (Data Highway Plus, Modbus Plus, Devicenet, Profibus, CC-Link.) Plug option cards into the 62-pin connector. In addition, these ToughPanels allow for compact flash storage. Simply open the back. |
|
|
|
|
|
|
|
|
|
